Leistung für nachhaltige Lösungen

Die Produktion von Gussteilen ist ein Prozess mit vielen komplexen prozesse. Je nach Einsatbereich, muss das Produkt die spezielle Anforderungen erfüllen. Der Auswahl der Prozess und die Nacarbeitung sowie die Werkstoffe spielen eine bedeutende Rolle bei der Herstellung der Bauteile.

Unsere Spezialisten arbeite mit Ihnen eng zusammen und ermitteln die Kriterien nachdem der Bauteil spaeter bewertet wird

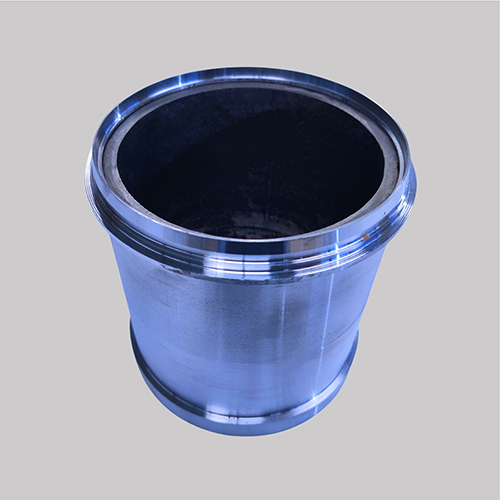

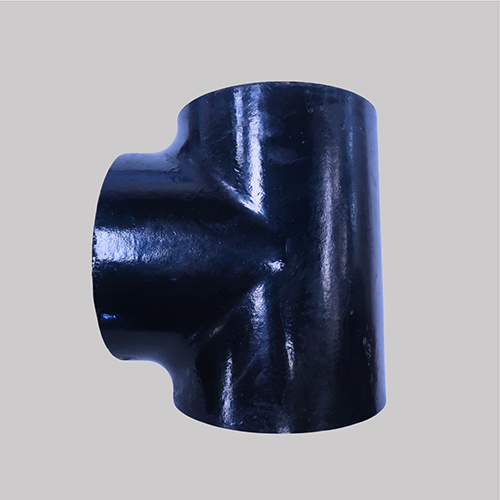

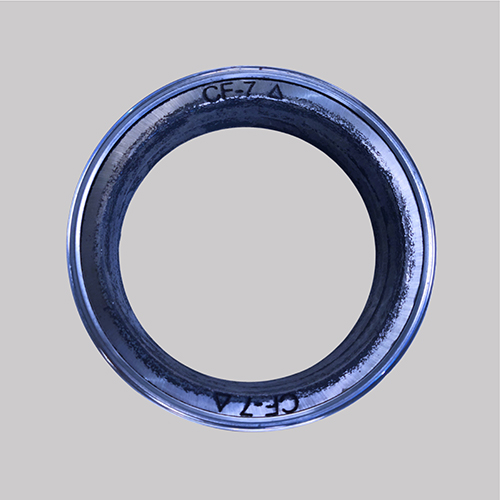

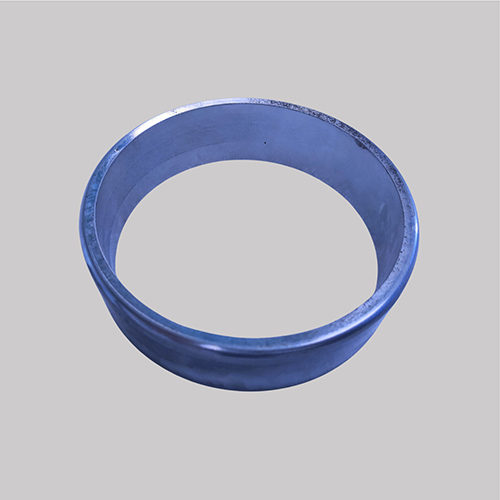

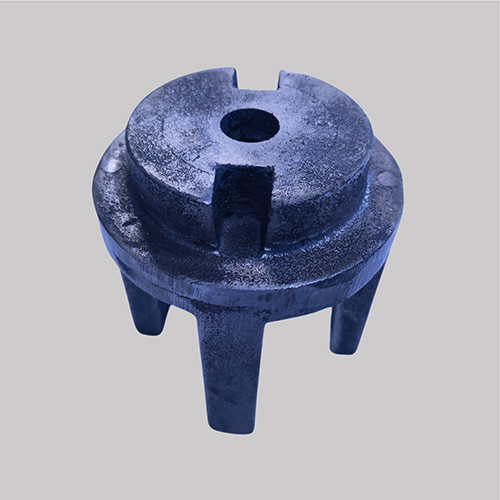

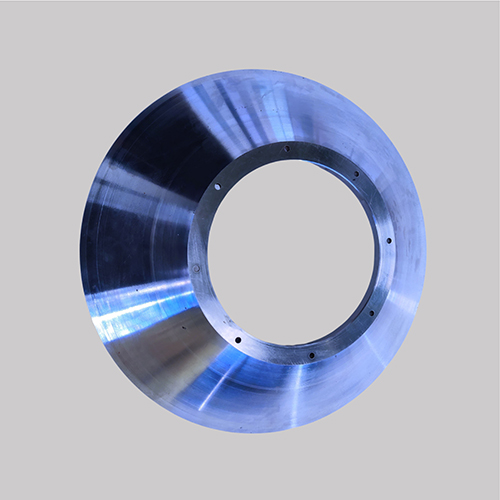

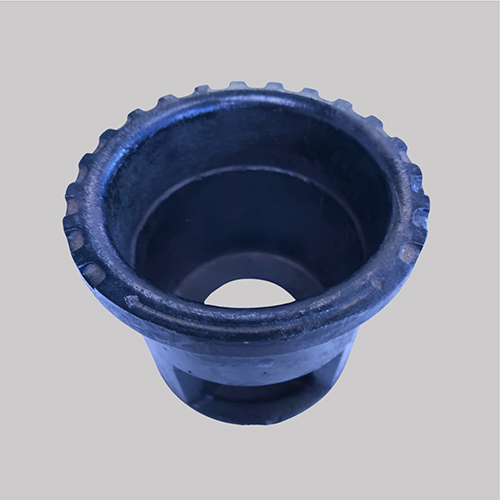

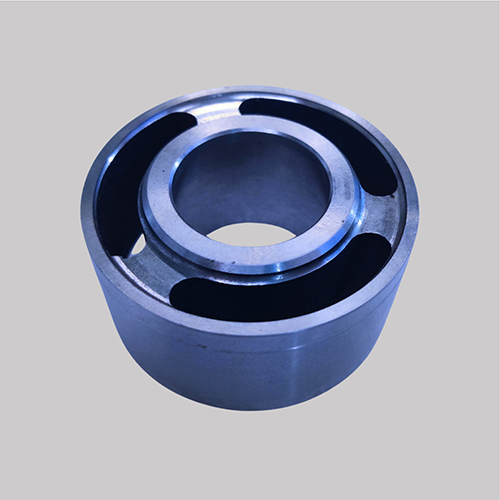

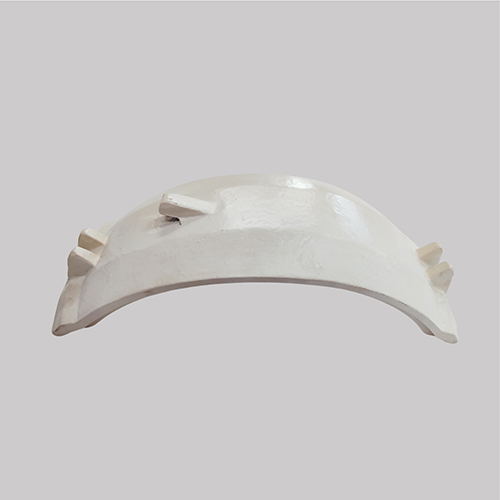

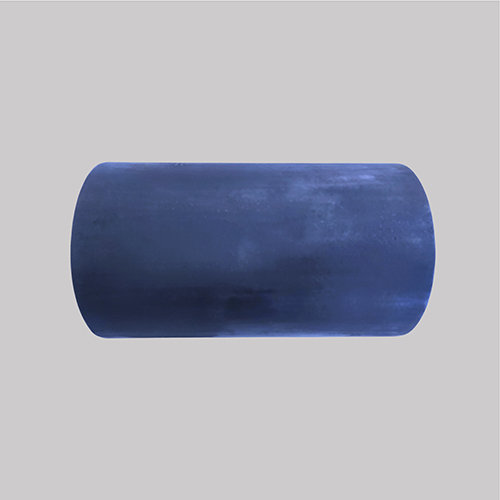

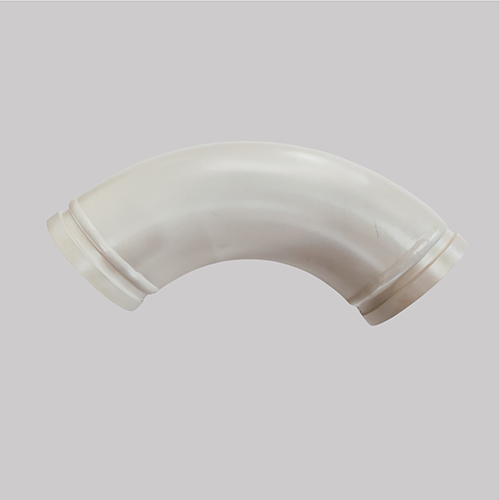

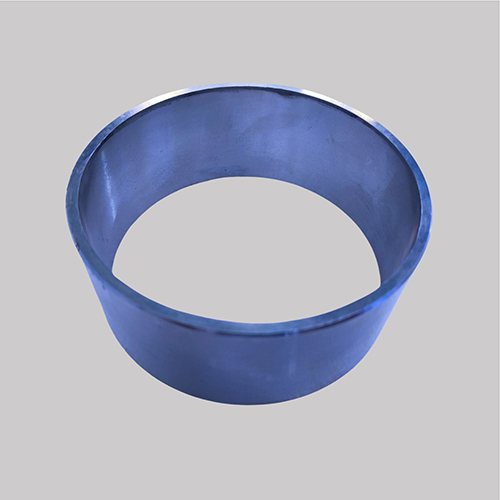

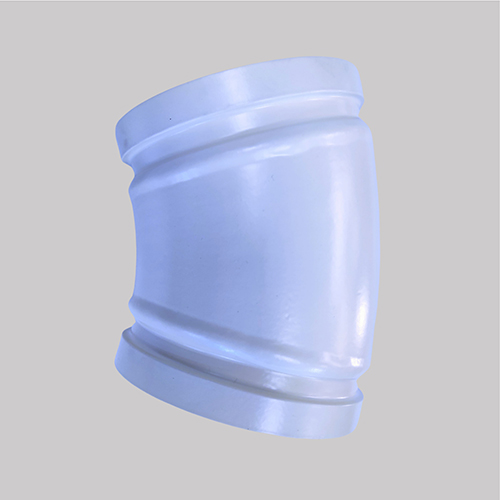

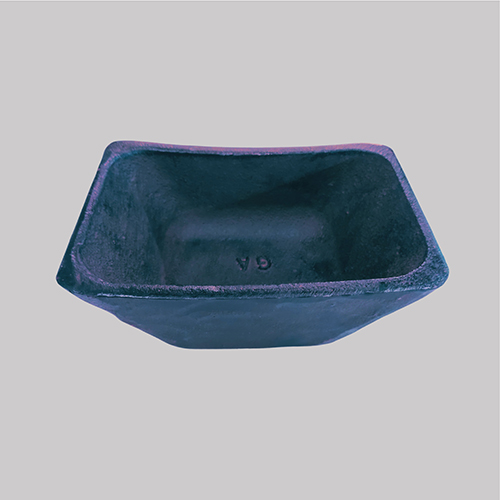

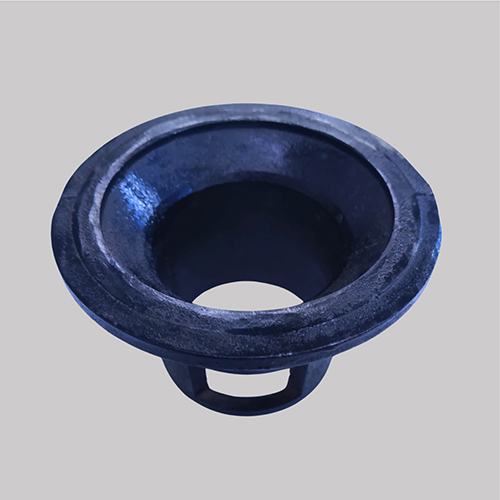

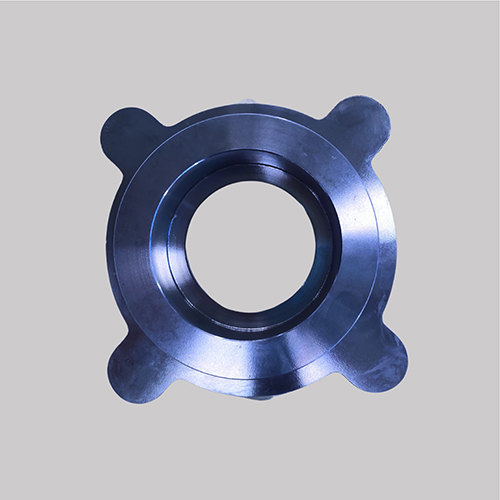

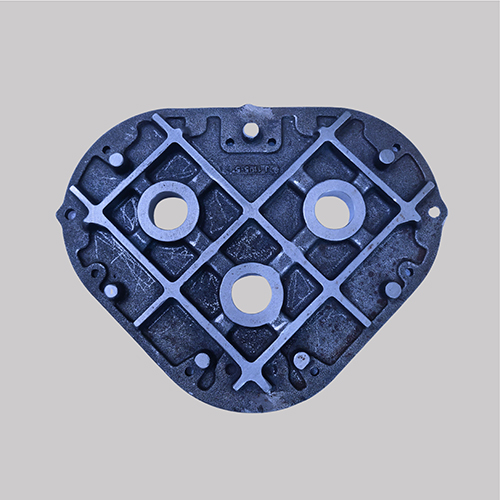

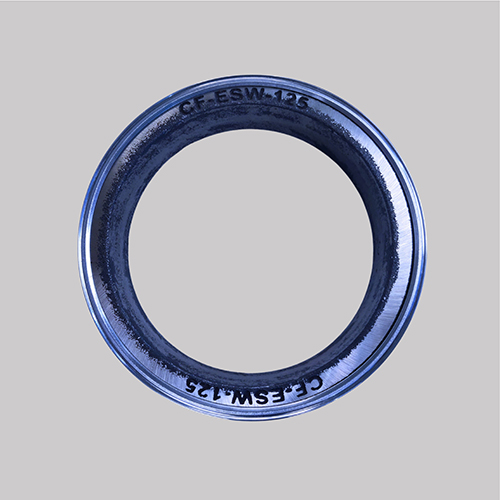

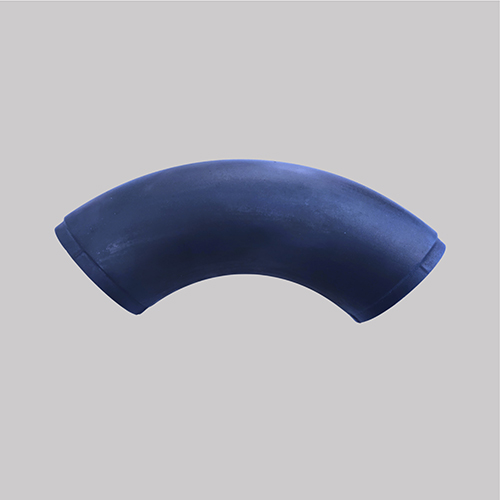

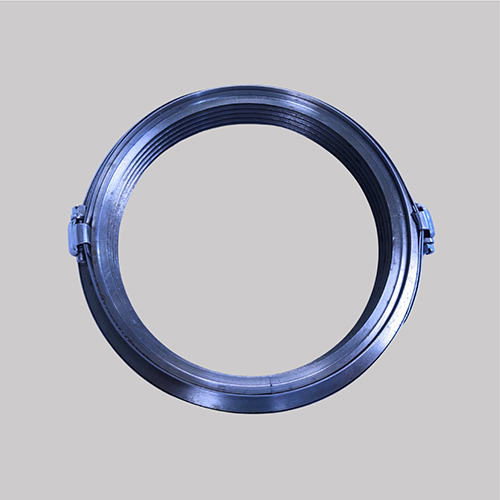

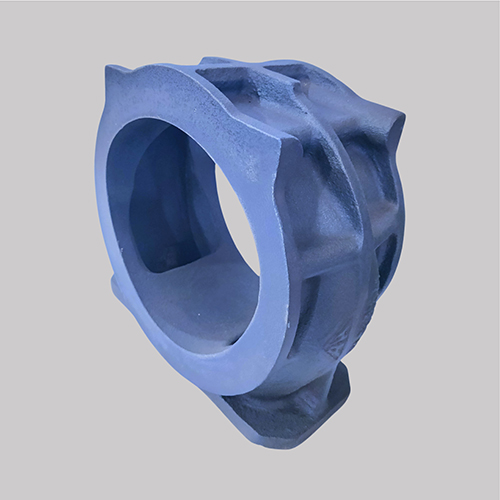

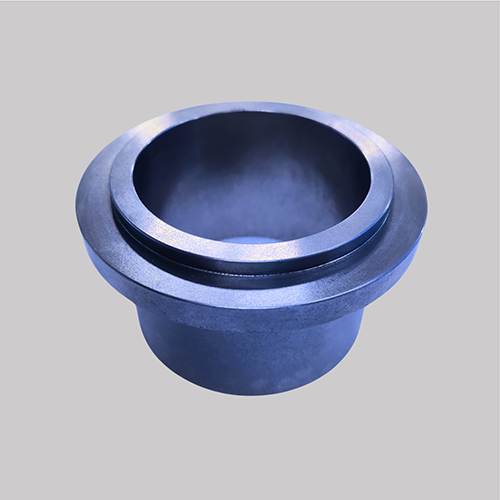

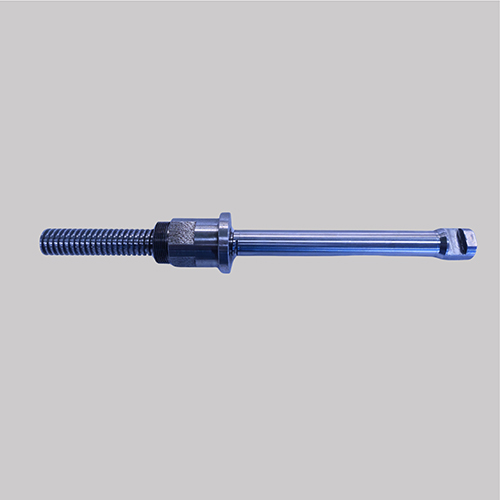

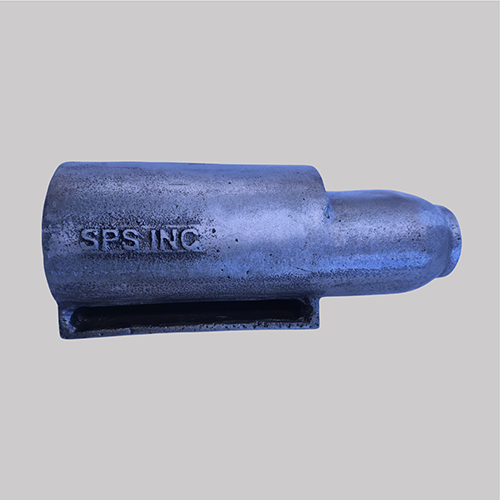

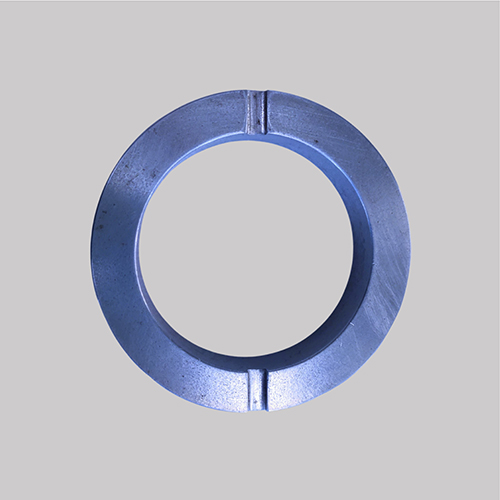

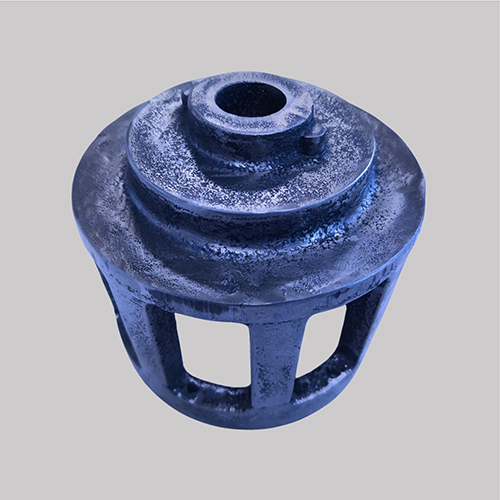

Gussprodukte von Metriklab

Unsere Produkte zeichnen sich durch beste Qualität und Präzision.

In Maschine-, Anlagen- und in der Bau Branche: unsere Produkte wir bieten unseren Kunden einen Mehrwert an. Wir legen viel Wert auf Sicherheit und schnelle Reaktionszeiten im Produktionsablauf.

Ni Resist and Abrasion resistant Castings

Ni Hard as per various grades of BS4844-1986. Abrasion resistant castings as per ASTM A-532 Ni Resist castings as per ASTM A439, ASTM A436 grades.

Steel and Alloy Steel Castings

Steel castings ASTM 216 Grade WCB, 8630 cast steel, A-915, IS 1030 etc. Stainless steel Castings, ASTM A217 grades like WC1, CA-15, CA 40.

Maximum capabilities for CNC turning

Part size limitations Metric units Imperial units
Maximum part diameter 431 mm 17 in
Maximum part length 990 mm 39 in
Maximum swing over the carriage 350 mm 13.7 in
Maximum spindle through-hole 40 mm 1.5 in

Maximum speed: 1700 RPM

Motor power: 640W

Available materials for CNC machining

Here is a list of our standard CNC machining materials available through our online platform.

CNC Metals:

Aluminum Stainless steel Mild, Alloy & Tool steel Other metal
6061-T6 303 Mild steel 1018 Brass C360
6082 304 Mild steel 1045 Copper C101
7075-T6 316L Mild steel A36 Copper C110
5083 2205 Duplex Alloy steel 4140 Titanium Grade 1
5052 17-4 Alloy steel 4340 Titanium Grade 2
2014 15-5 Tool steel O1 Invar
2017 416 Tool Steel A2 Inconel 718
6063 420 Tool Steel A3 Magnesium AZ31B
7050 430 Tool Steel D2
A380 440C Tool Steel S7
MIC 6 301 Tool Steel H13

Available surface finishes for CNC machining

Surface finishes are applied after machining and can change the appearance, surface roughness, hardness and chemical resistance of the produced parts.

product1
As Machined (standard)

~125 RA pin (3.2 RA pm). Minor tool marks will be visible on the part.

product1
Smoothed

Parts are machined at a lower feed rate in order to achieve a surface roughness of ~62.5 RA uin (1.6 RA um). Surface roughness can be decreased up to ~32 RA uin (0.8RAum) upon request.

product1
Bead Blasted

Bead blasting adds a uniform matte or satin surface finish on a machined part, removing all tool marks. Mainly used for aesthetic purposes.

product1
Anodized Clear or Color(type II)

Anodizing adds a thin, hard, non-conductive ceramic coating on the surface of aluminum parts, increasing their corrosion and wear resistance. Available in a variety of colors.

product1
Anodized Hardcoat (type III)

Hardcoat anodizing produces a thicker ceramic coating providing excellent corrosion and wear resistance. for functional applications.

product1
Anodized Hardcoat (type III)

Hardcoat anodizing produces a thicker ceramic coating providing excellent corrosion and wear resistance. for functional applications.

product1
Powder Coated

Powder coating adds a thin layer of strong, wear and corrosion resistant protective polymer paint on the surface of a part. Available in a large range of colors.

product1
Electropolished

Electropolishing is an electrochemical process used to polish, passivate and deburr metal parts. It is useful to reduce surface surface roughness.

product1
Black oxide

Black oxide is a conversion coating used to improve corrosion resistance and minimize light reflection.

product1
Chromate conversion coating (Alodine/Chemfilm)

Chromate conversion coating is used to increase the corrosion resistance of metal alloys while maintaining their conductive properties.

product1
Brushing

Brushing is produced by polishing the metal with grit resulting in a unidirectional satin finish,
